Wasatch Pixels Advanced Eight Controller

Wasatch Advanced Eight LED Pixel Controller with Power Distribution to use with WLED and xLights

Note: The 5V version is currently out of stock. Select the Multi-voltage version if need you 5V.

This is an LED pixel controller with 8 output ports for 8 different strings of lights. It has both WiFi and Ethernet connectivity. Fused outputs with plug connectors make easy pixel connections.

What is it?

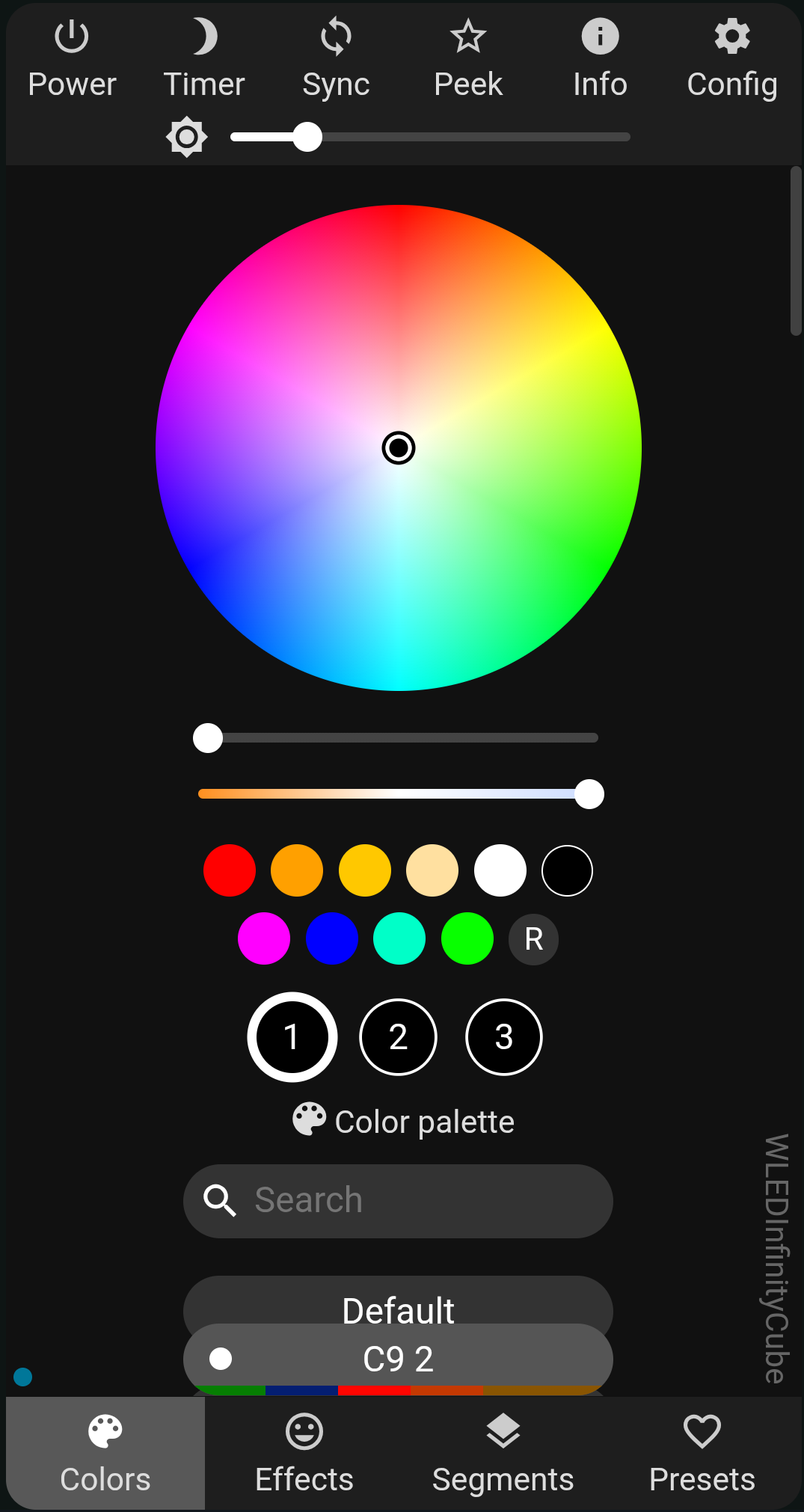

Preinstalled WLED firmware is simple to use and works with multiple types of pixels including WS2811, SK6812, Govee and more. You can customize colors and animations using the WLED app or web interface. Scheduling light timers is easy to do as well. You can change colors and animations quickly and easily on the fly for special events, holidays, or just for fun.

For those wanting to do more complex light shows the controller receives E1.31 and DDP data for sequenced light shows from programs such as Vixen and xLights and Falcon Player(no paid license needed).

Technical Information:

Led Pin Assignments:
– Led 1: Pin 2
– Led 2: Pin 4
– Led 3: Pin 12
– Led 4: Pin 14
– Led 5: Pin 15
– Led 6: Pin 17
– Led 7: Pin 5
– Led 8: Pin 33

Recommended maximum number of pixels per pin:
– 40 Frames Per Second: 400 pixels/pin (has been tested to 600 pixels/pin)
– 20 Frames Per Second: 600 pixels/pin
